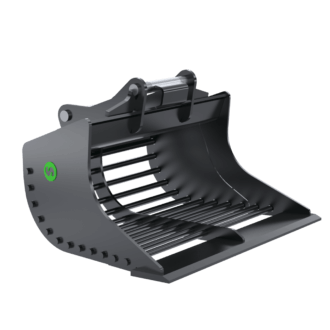

Sorting buckets
Bucket 2-32 tonnes
Buckets designed for easy and efficient sorting of material
A sorting bucket is designed for handling and sorting materials like rocks, debris, or recyclable waste. It features a horizontal, open, grid structure that allows smaller particles, such as soil or sand, to pass through while retaining larger items. This makes it ideal for applications such as site cleanup, demolition, and material separation.
Steelwrist sorting buckets are reinforced with high grade steel in wear plates and steel bars for durability and precision. Choosing a Steelwrist sorting bucket will make your sorting of rocks, pebbles and other debris easy and efficient.
The sorting bucket works both if your excavator is equipped with a tiltrotator or not.
Technical specification
| Sorting buckets | Machine weight | Bracket S-type | Width [mm] | Volume [l] | Weight [kg] | Sorting [mm] | Part No |
|---|---|---|---|---|---|---|---|
| SOB2 | 2–6 | S30 | 900 | 130 | 91 | 40 | 101204 |
| SOB3 | 2–6 | S40 | 900 | 130 | 96 | 40 | 898400 |
| SOB4 | 2–6 | S40 | 1000 | 200 | 140 | 50 | 898401 |
| SOB6 | 2–6 | S40 | 1200 | 300 | 165 | 50 | 898402 |
| SOB8 | 5–12 | S45 | 1300 | 370 | 290 | 50 | 898403 |
| SOB8 | 5–12 | S50 | 1300 | 370 | 290 | 50 | 898403 |
| SOB14 | 12–20 | S60 | 1600 | 650 | 440 | 50 | 898405 |
| SOB15 | 12–20 | S60 | 1600 | 750 | 630 | 65 | 898406 |
| SOB17 | 12–20 | S60 | 1700 | 900 | 700 | 70 | 898407 |
| SOB20 | 18–32 | S70 | 1700 | 1100 | 920 | 70 | 898408 |
| SOB25 | 18–32 | S70 | 2000 | 1400 | 1050 | 70 | 898409 |
| SOB25 | 18–32 | S80 | 2000 | 1400 | 1130 | 70 | 101205 |
