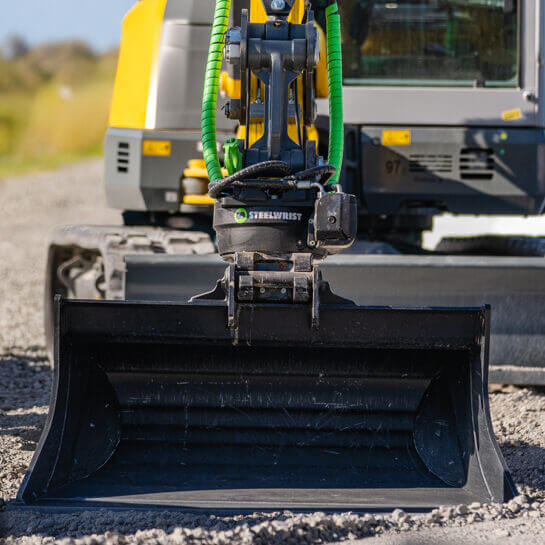

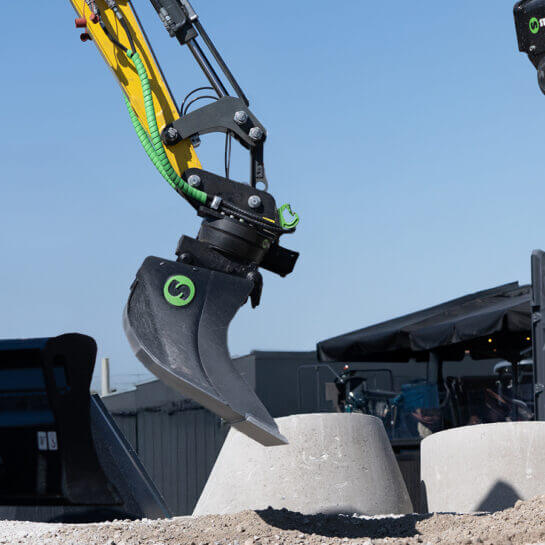

Rotor couplers for excavators between 4 and 20 tonnes
Steelwrist rotor couplers bring a new level of versatility and precision compared to a standard coupler. The flexibility provided by the XR rotor couplers makes your excavator able to take on a variety of tasks, maximizing the utilization of the machine. Designed to perform, our robust gearbox allows for precise and efficient rotation of any work tool. With 360° full rotation freedom you get maximum manoeuvrability and effectiveness.
Excavators equipped with rotor couplers become more versatile machines that can easily change work tools for digging, lifting, crushing or using a grapple, making them suitable for a broad range of applications in construction, demolition, landscaping, and more.

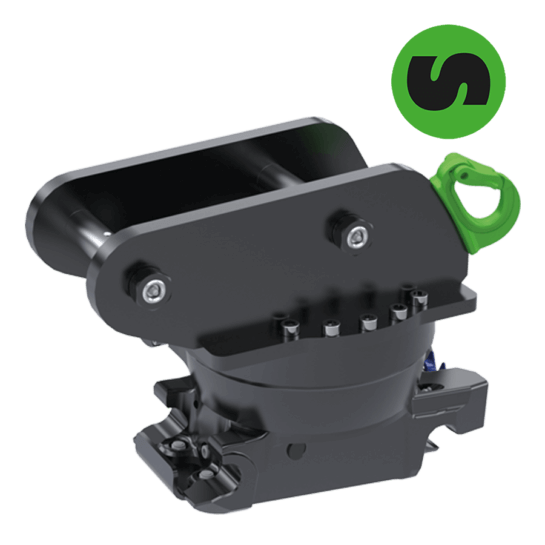

Compact design and easy installation
The Steelwrist rotor coupler has a robust design and still a low building height and weight. Installation is fast and easy as no separate control system is required. The machine needs to be equipped with minimum one dual connection auxiliary line, and an additional auxiliary line can be used to operate the gripper unit (option) or a hydraulic work tool under the rotor coupler.
Modular design for upgrade to SQ/Open-S
The XR20 rotor coupler is available with interfaces following the symmetrical standard (S standard), which is the fastest growing standard internationally. Thanks to the modular design it is possible to upgrade the rotor coupler from S-type to SQ-type. Steelwrist SQ is our high performing automatic oil connection technology used to easily change and connect hydraulic work tools on the excavator. Naturally all SQ products comply with the Open-S standard.
High flow swivel joint for enhanced capabilities
Our rotor couplers have high flow swivel joints, enabling the use of high flow-demanding work tools such as hydraulic breakers, compactors and grapples. The high flow swivel design ensures maximum flow efficiency, allowing your work tools to perform at their best.
Innovative LockSense safety technology
The XR20 comes equipped with our patented LockSense technology, an advanced sensor based system to indicate if the work tool is securely locked. This technology provides a robust and secure solution for safe work tool changes, compliant with safety regulations.
Gripper cassette (option)
The downward angled 3-finger gripper extends the reach of your excavator. With its improved geometry it gives you wide opening and near-complete closure, and it handles objects with unmatched precision. The robust design, including sturdy cylinder covers, ensures smooth operation in all your jobs.
Absolute rotation sensor (option)
Upgrade your coupler with an Absolute rotation sensor for improved accuracy, control and integration with Machine Control Systems (MCS).
Information
Rotorfäste | XR7 | XR20 | XR20 |
---|---|---|---|
Pikaliitinn | S40 | S60 | SQ60 |
Konepaino [ton] | 4-7 | 12-20 | 12-20 |
Maksimi murtovoima [kNm] | 65 | 180 | 180 |
Paino alkaen [kg] | 130 | 490 | 490 |
Rakennekorkeus [mm] | 272 | 487 | 487 |
Pituus [mm] | 610 | 925 | 925 |
Puomin maksimi halkaisija [mm] | 200 | 335 | 335 |
Tapin halkaisija [mm] | 35-50 | 60-80 | 60-80 |
Akseliväli [cc -mitta] [mm] | 160-310 | 300-500 | 300-500 |
Pyöritysvoima [kNm] | 5,2 | 8,8 | 8,8 |
Hydrauliska extrafunktioner med grip | 1 | 1 | 1 |
Hydrauliska extrafunktioner utan grip | 1 | 2 | 2 |
Oil Flow [l/min] | 30 | 65 | 65 |
Maksimipaine [bar] | 210 | 210 | 210 |
Maksimi lisähydrauliikan paine [bar] | 350 | 350 | 350 |
Turvaratkaisu | FPH | LockSense | LockSense |
